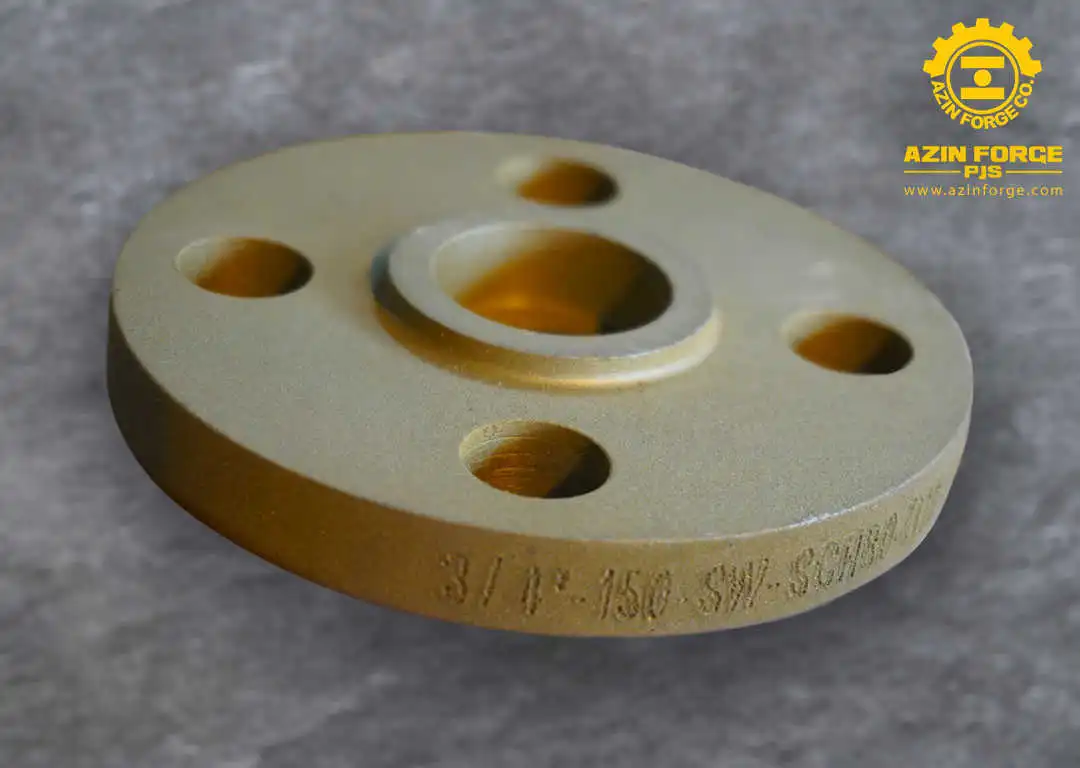

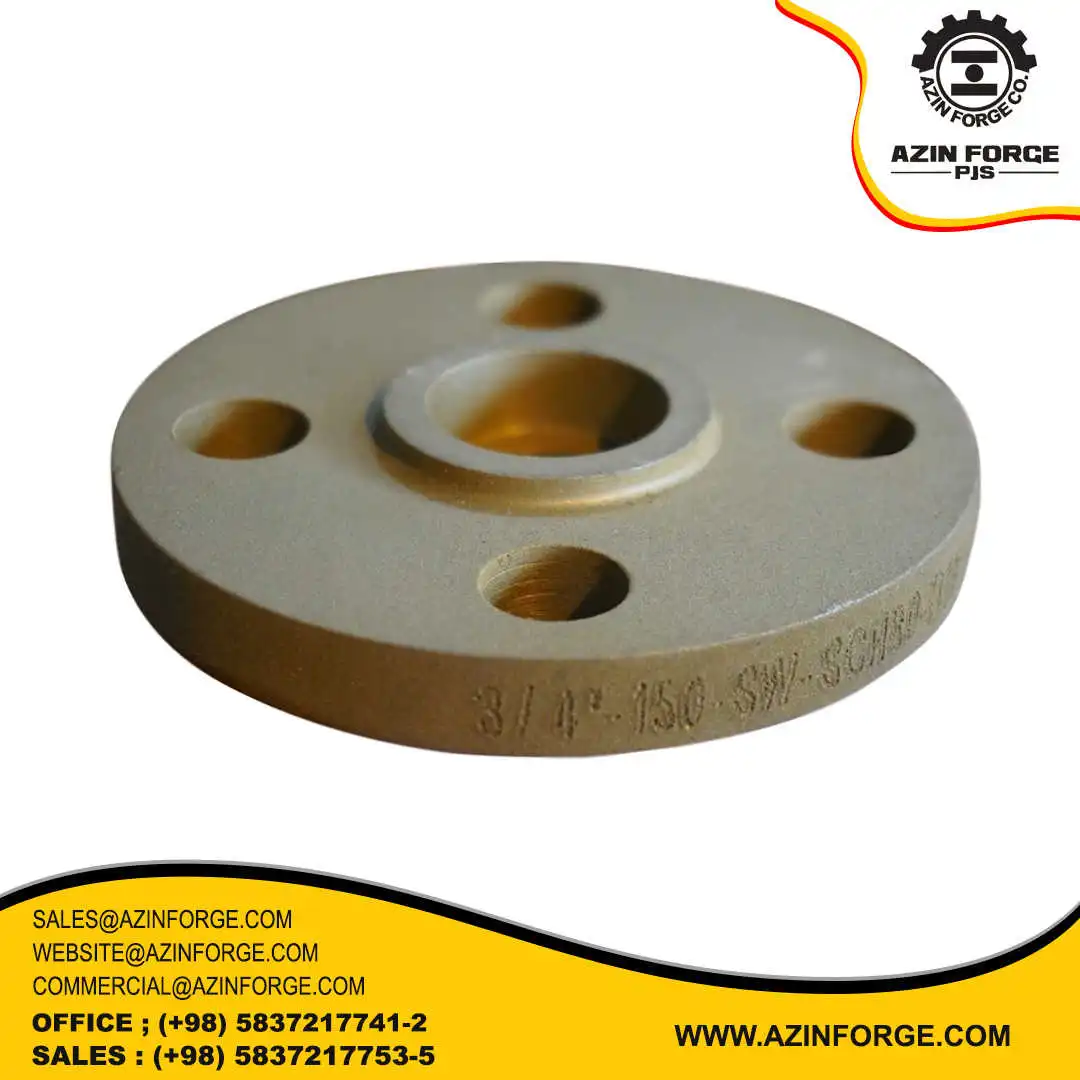

Socket Weld Flange (CL-150-3/4″) manufactured by AzinForge Company is one of the most widely used connections in the oil, gas, petrochemical industries and pressure piping systems. Due to its special design, this type of flange is suitable for high-pressure lines and extreme temperatures and ensures a safe and leak-free connection of pipes.

Technical Specifications:

1- Product name: Socket Weld Flange (SW)

2- Class: 150

3- Size: 3/4 inch

4- Surface type: RF (Raised Face)

5- Manufacturing standard: ASME B16.5

6- Nominal pressure (PN): 16Bar

7- Pressure and temperature: This flange can withstand a pressure of 285 psi if the temperature is less than 37 degrees Celsius, and if the temperature is around 537 degrees Celsius, the highest pressure that can be tolerated is 20 psi.

8- Raw materials: carbon steel, stainless steel and alloy steel

9- Application: Oil and gas, petrochemical, power plant and chemical industries

As a reputable factory, AzinForge produces Socket Weld Flange (CL-150-3/4″) with high quality and in accordance with customer needs. If you need more information or to inquire about prices or orders, you can contact the company’s sales department.
